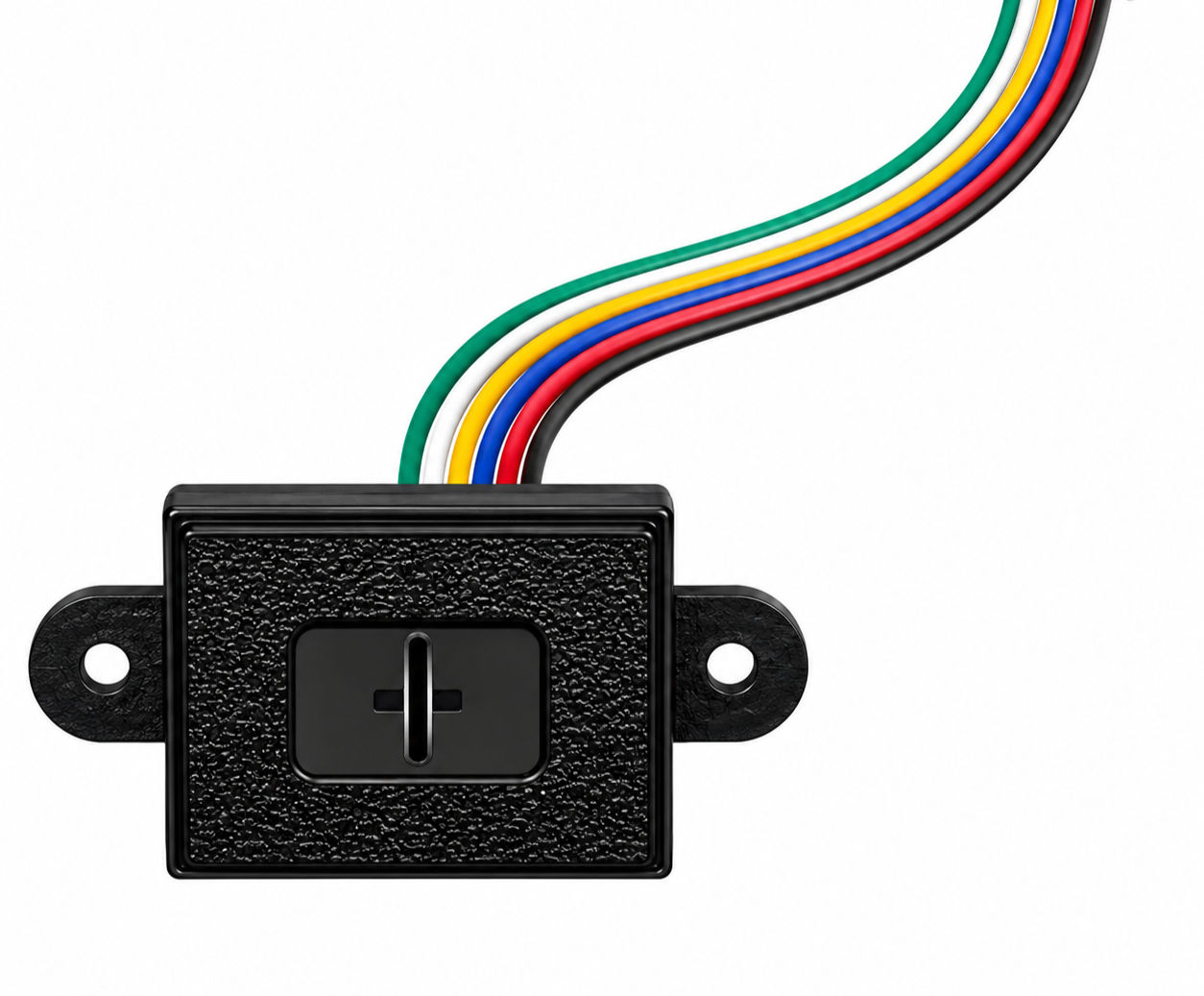

The VL53L0X Distance Sensor Module with Housing is a compact Time-of-Flight (ToF) distance sensing module designed for accurate and reliable short-range distance measurement. It integrates the VL53L0X ToF sensor with a custom-designed PCB, I²C digital interface, onboard pull-up circuitry, and power decoupling. The dedicated protective housing provides a compact and protected form factor for easy integration into robotics, automation, obstacle detection, proximity sensing, and other embedded applications. Key Features:
VL53L0X Time-of-Flight (ToF) distance sensor
Digital I²C communication interface
3.3V supply operation
Default 7-bit I²C address 0x29
Hardware XSHUT shutdown control
GPIO1 interrupt/status output
Integrated 4.7 kΩ I²C pull-up resistors
On-board 0.1 µF power decoupling capacitor
6-pin interface connector
Custom-designed PCB
Protective custom-designed housing
Compact form factor Suitable for robotics and embedded applications.
Technical Specifications:
Parameter | Details |
Product Type | VL53L0X – Time-of-Flight Distance Sensor Module |
Operating Voltage | 3.3 V |
Interface | I²C |
Number of Interface Pins | 6 |
I²C Pull-up Resistance | 2.2 kΩ |
Decoupling Capacitor | 0.1 µF |
Shutdown Control | XSHUT |
Interrupt/Status Output | GPIO1 |
PCB Length | 25 mm |
PCB Width | 19 mm |
PCB Thickness | 1.6 mm |
Housing Length | 46.72 mm |
Housing Width | 23.2 mm |
Housing Height | 8.5 mm |
Mounting Hole Diameter | 3.2 mm |
Twisted Wire Length | 135 mm |
Applications:
Robotics
Obstacle Detection
Distance Measurement
Autonomous Robots
Industrial Automation
Embedded Systems
IoT Projects
Arduino Projects
ESP32 Projects
STM32 Projects
