Product Name

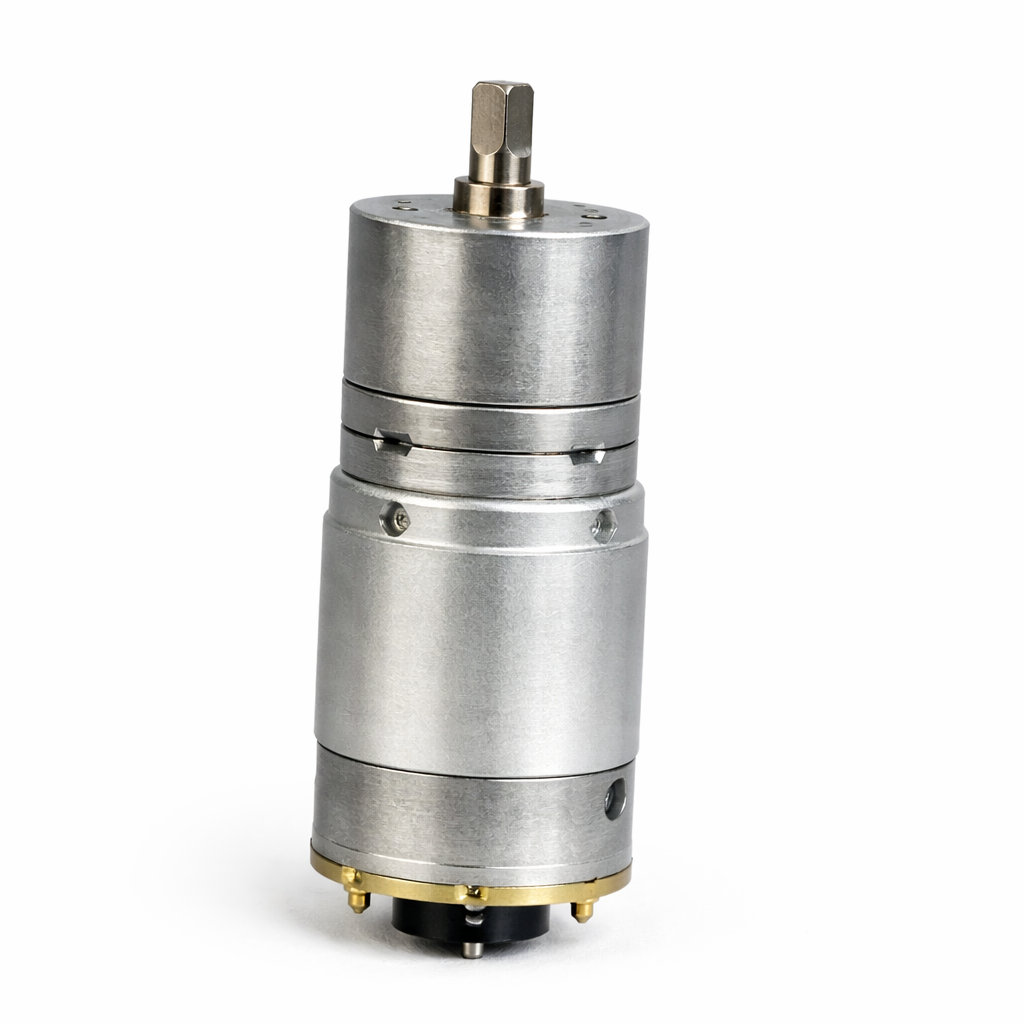

 JGA25-370B DC Geared Motor with Encoder

Model

 JGA25-370B

Rated Voltage

 12V DC

No-Load Speed

 108 RPM

Motor Type

 Brushed DC Gear Motor

Gearbox Type

 Metal Spur Gearbox

Gearbox Diameter

 25 mm

Shaft Diameter

 4 mm

Shaft Length

 ~10 mm

Shaft Type

 D-Shaped Shaft

Rotation Direction

 CW / CCW (Reversible)

Encoder Type

 Magnetic / Hall Encoder

Encoder Output

 A/B Quadrature Signal

Encoder Supply Voltage

 3.3V – 5V

Connector Type

 4-Pin JST Connector

Housing Material

 Metal

Mounting Type

 Front Face Mounting Holes

Application

 Robotics, automation systems, position control, mobile robots, and IoT projects
